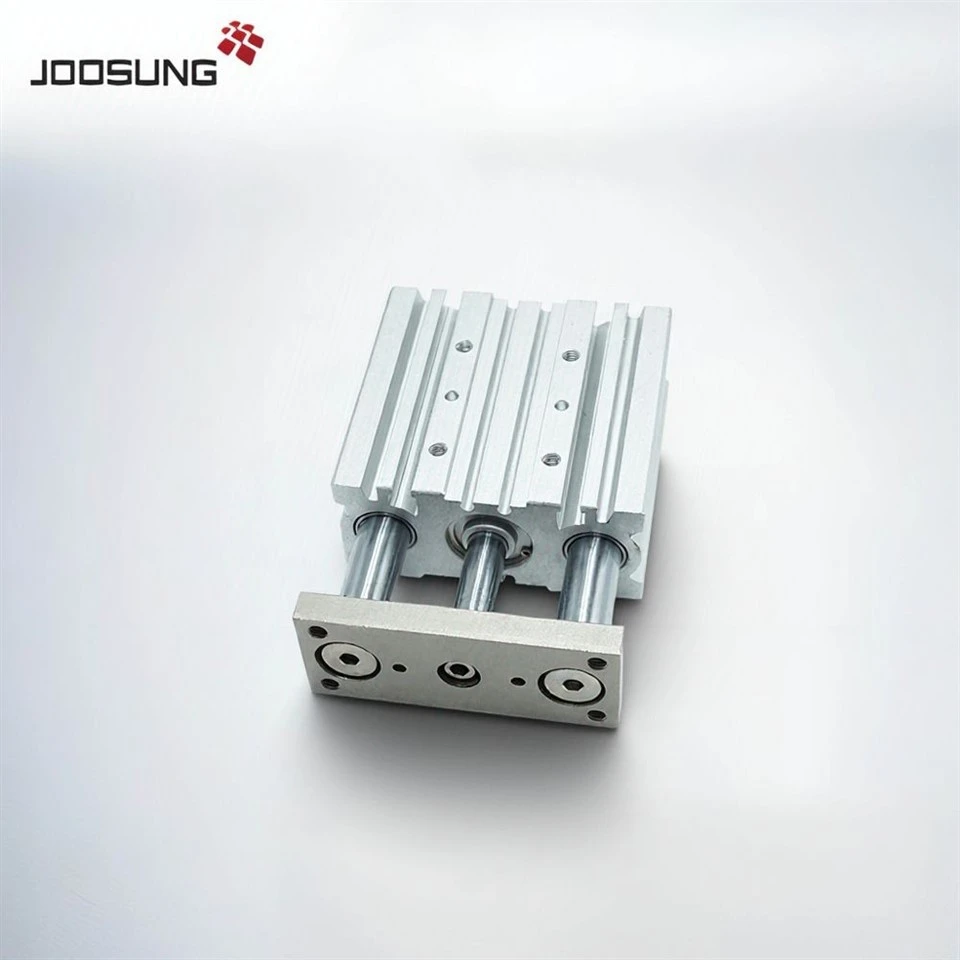

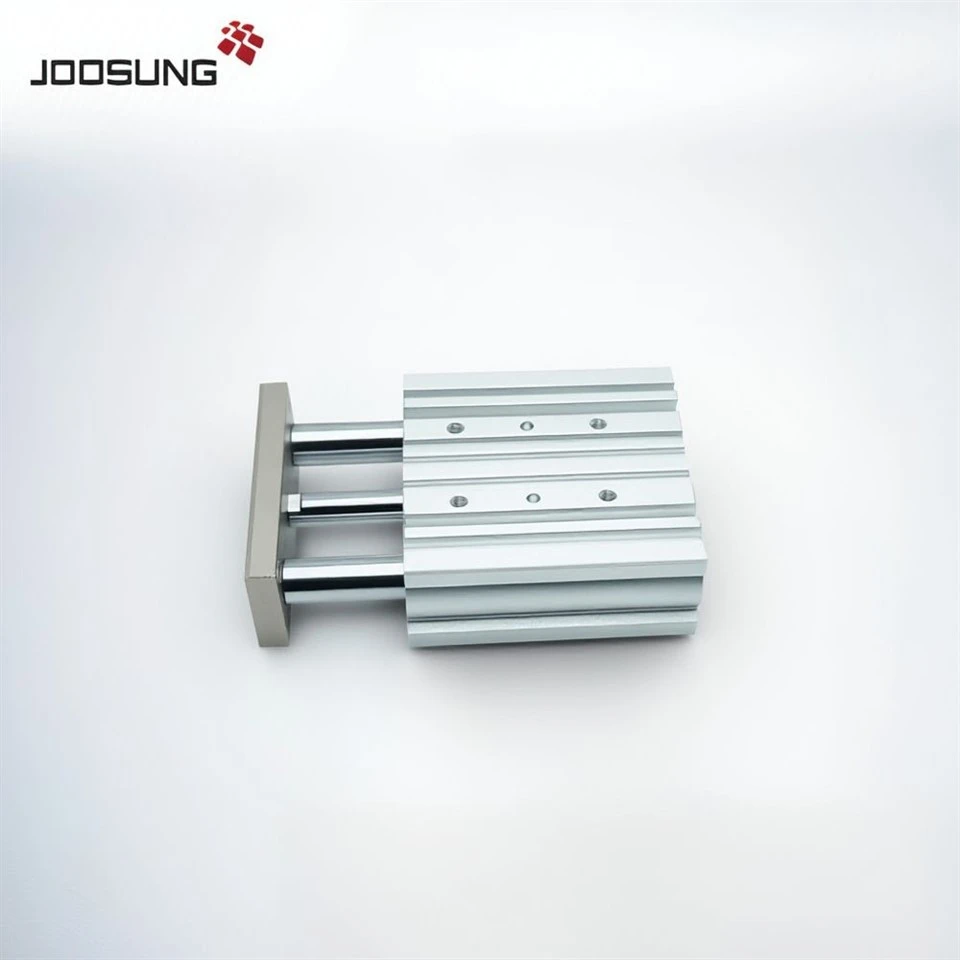

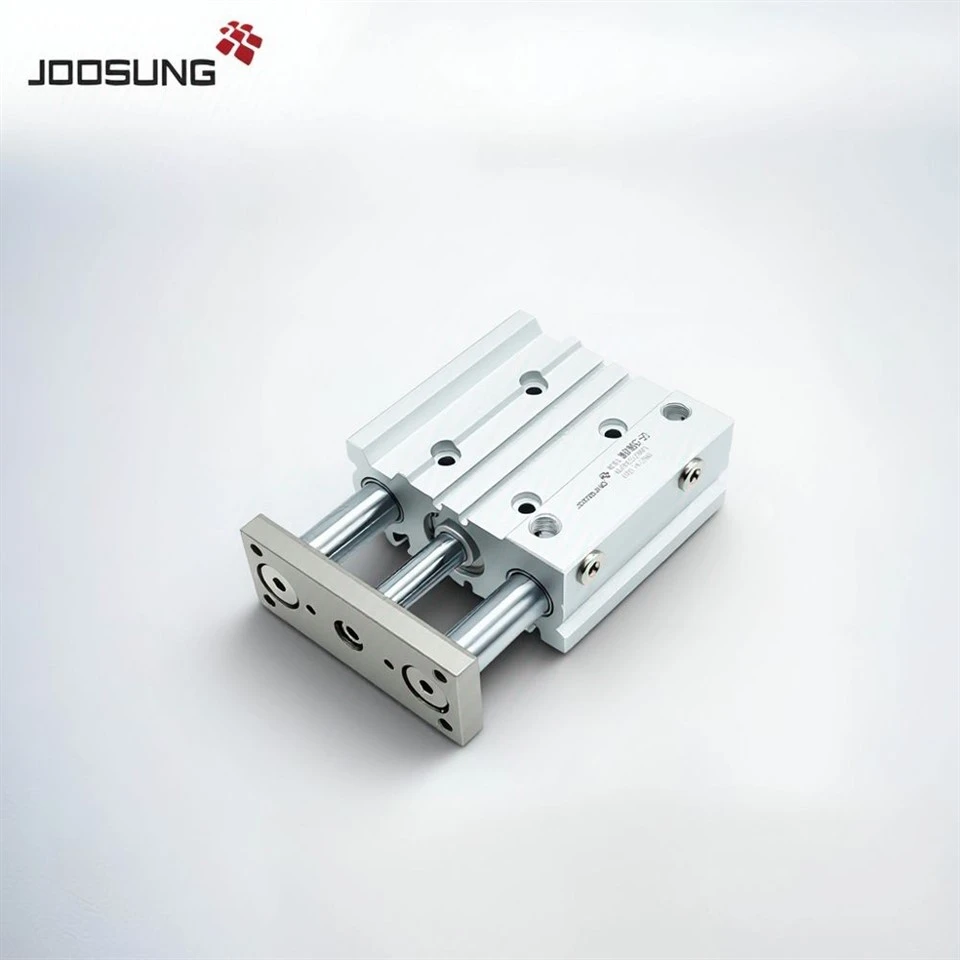

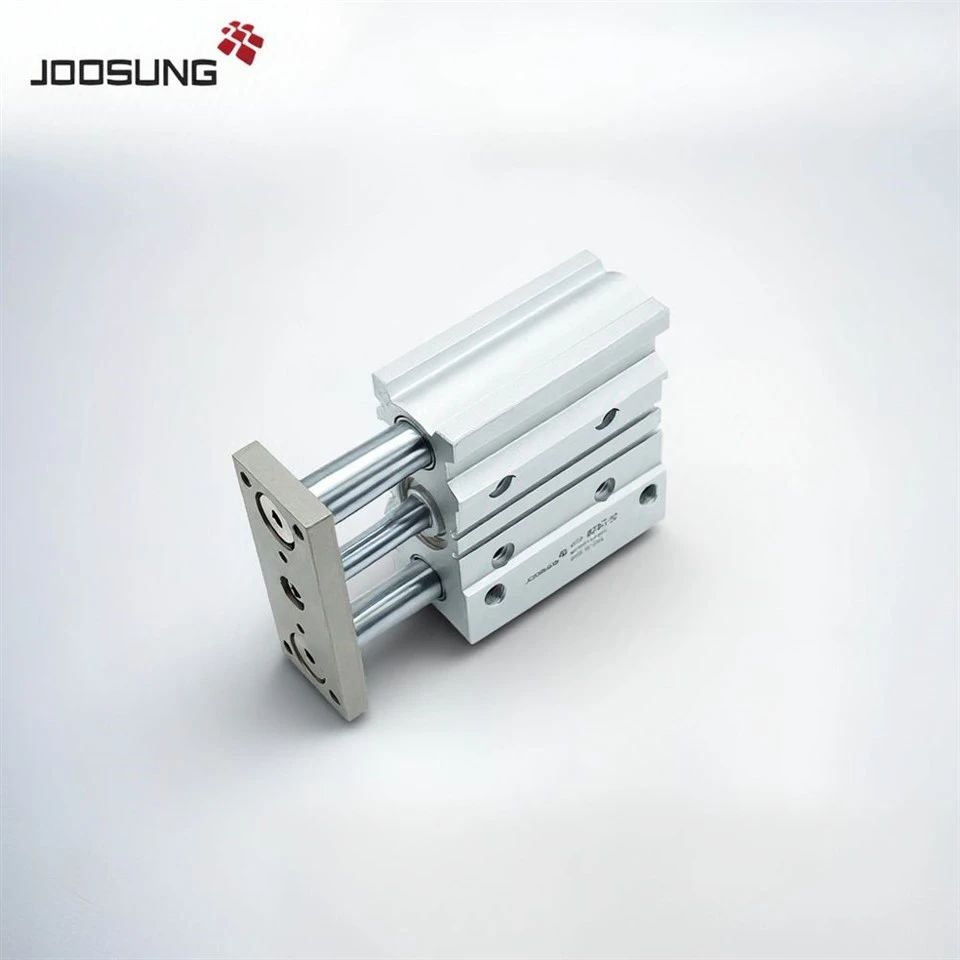

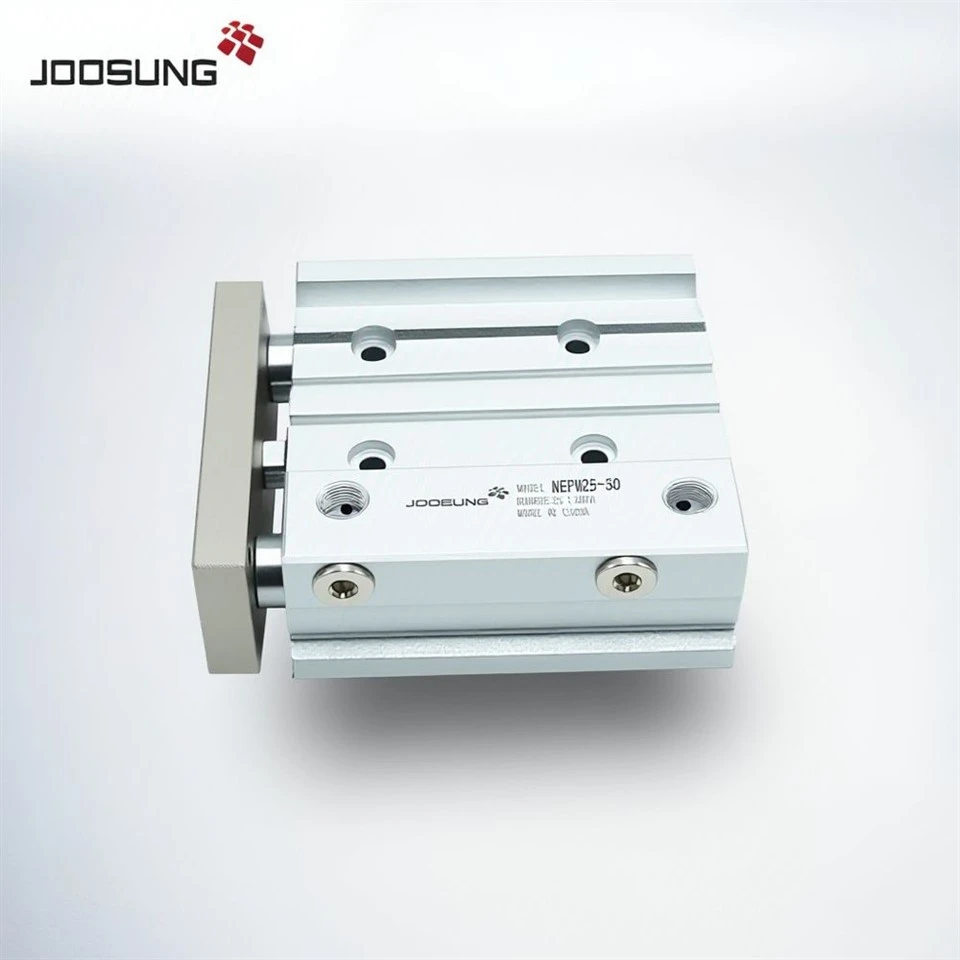

BuMgpm seriyalibo'sh joy - tejashixcham boshqariladigan pnevmatik tsilindra bilanuchlik - novema tuzilishi, mukammal talab qiladigan arizalar uchun muhandislateral yuk qaratish, aniq chiziqli harakatvaBarqaror ko'rsatmao'rnatilgan joylarda. U bilanIntegratsiyalashgan qo'llanma novdalari va trichal yoki to'pni qabul qilish imkoniyatlari, MGPM yon yuklash yoki ofset sharoitida og'ir chidamlilik va uzluksiz ishlashni etkazib beradi. Ushbu tsilindr siqish, itarish yoki ko'tarish uchun juda mos keladiAvtomatlashtirilgan montaj liniyalari, robototexnika, qadoqlash tizimlari va - va - post birliklar.
|
MGP ni qanday buyurtma qilish kerakMSeriyali pnevmatik silindr |
||||
|
Mgp |
M |
-32 |
-50 |
Mt |
|
Replek tipini kiriting |
Bore hajmi |
Insult |
Sensor |
|
|
12 16 |
||||
|
M: slaydli rul |
20 25 |
D-Z73 |
||
|
32 40 |
||||
|
L: to'pni hidoyat |
50 63 |
|||
|
80 100 |
||||
Cheklangan bo'sh joy va og'ir yuk ko'tarish uchun yuqori - yuqori - tsilindrni qidiryapsizmi?
BuMgpm seriyali - novdali silindrtakliflaraniq joylashtirish, a'lo lateral yuklarga chidamlilikvaModul o'rnatish dizayni- zamonaviy avtomatlashtirish tizimlari uchun juda mos keladi.
Biz bilan hozir bilan bog'laningMa'lumotshetlar, 3D CAD modellari va moslashtirilgan tirnoqlar uchun!
|
Spetsifikatsiya |
|||||||||||
|
Bore (mm) |
12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
|
|
Operatsion suyuqlik |
Havo |
||||||||||
|
Operatsiya |
Ikki tomonlama harakat |
||||||||||
|
Anti - Bosim sinovi bosimi |
1.5MPA (15.3kgf / sm²) |
||||||||||
|
Maks.operatsiya bosimi |
1.0MPA (10.2kgf / sm²) |
||||||||||
|
MIN.OKERATER BUGAR |
0.12MPA (1.2KGF / sm²) |
||||||||||
|
Atmosent va suyuqlik harorati |
5-+60 ilmiy daraja |
||||||||||
|
Piston tezligi |
50 ~ 500mm / s |
50 ~ 400mm / s |
|||||||||
|
Bufer |
Rezina bufer |
||||||||||
|
Qo'pol bag'rikenglik |
+15 mm |
||||||||||
|
Moylash |
- lub |
||||||||||
|
Ko'tarmoq |
Slevid roid / balli |
||||||||||
|
|
Elishiladigan rul |
± 0,08 daraja |
± 0,07 daraja |
± 0,06 darajasi |
± 0,05 daraja |
± 0,04 daraja |
|||||
|
To'p Ko'tarmoq |
± 0.10 daraja |
± 0,09 daraja |
± 0,08 daraja |
± 0,06 darajasi |
± 0,05 daraja |
||||||
|
Rc porti porti rc (pt) |
M5×0.8 |
1/8" |
1/4" |
3/8" |
|||||||
|
SeriyaModel |
Mavjud modellar |
|
Mgpm12 seriyali |
Mgpm12-5z, mgpm12-150z, mgpm12-30s, mgpm12-45z, mgpm12-50z, mgpm12-55z, mgpm12-55z, Mgpm12-60z |
|
Mgpm16 seriyasi |
Mgpm16-5z, mgpm16-15-05z, mgpm16-30z, mgpm16-45z, mgpm16-50z, mgpm16-55z, mgpm16-55z, Mgpm16-60z |
|
Mgpm20 seriyali |
Mgpm20-5z, mgpm20-150z, mgpm20-350z, mgpm20-45z, mgpm20-55z, mgpm20-60z, mgpm20-60z |
|
Mgpm25 seriyali |
Mgpm25-5-10z, mgpm25-205-30z, mgpm25-40z, mgpm25-50z, mgpm25-50z, mgpm25-55z, mgpm25-55z, mgpm25-55z, mgpm25-55z, Mgpm25-60z |
|
Mgpm32 seriyali |
Mgpm32-5z, mgpm32-150z, mgpm32-30-30s, mgpm32-45z, mgpm32-50z, mgpm32-55z, mgpm32-55z, Mgpm32-60z, mgpm32-70z, mgpm32-75z, mgpm32-80z |
|
Mgpm40 seriyali |
Mgpm40-5z, mgpm40-145z, mgpm40-40z, mgpm40-550z, mgpm40-55z, mgpm40-60z, mgpm40-60z, Mgpm40-65z, mgpm40-70z, mgpm40-75z, mgpm40-80z |
|
Mgpm50 seriyali |
Mgpm50-5z, mgpm50z, mgpm50-30z, mgpm50-450z, mgpm50-55z, mgpm50-55z, mgpm50-60z, mgpm50-60z, Mgpm50-65z, mgpm50-75z, mgpm50-80z |
|
Mgpm63 seriyali |
Mgpm63-5z, mgpm63-150z, mgpm63-30-30z, mgpm63-45z, mgpm63-50z, mgpm63-55z, mgpm63-55z, mgpm63-55z, Mgpm63-60z, mgpm63-70z, mgpm63-75z, mgpm63-80z |
|
Mgpm80 seriyali |
Mgpm80-5z, mgpm80-20-50z, mgpm80-30-40z, mgpm80-45z, mgpm80-50s, mgpm80-55z, mgpm80-55z, Mgpm80-60-65z, mgpm80-70z, mgpm80-75z, mgpm80-80z |
